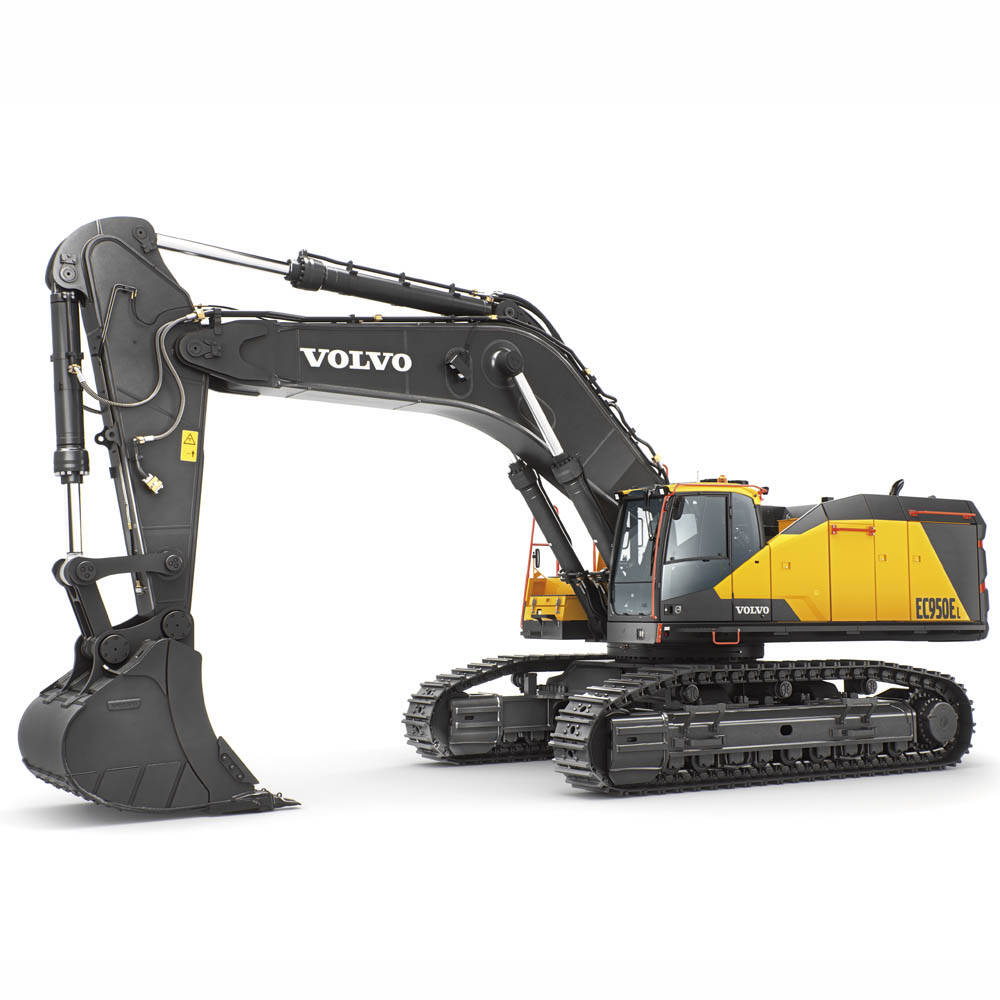

EC950E
Tackle challenging job sites with ease in the EC950E compact excavator from Volvo. Built with high quality components.
TECHNICAL SPECIFICATIONS | DESCRIPTION |
---|---|
Operating Weight | 90710 kg |
Engine Type | Volvo D16, Tier-2 |
Gross Power | 611 hp |
Maximum Torque @Engine Speed | 2650 Nm @1350 rpm |
Displacement | 16.1 Liter |
DIMENSION | DESCRIPTION |
Overall Length | 13615 mm |
Overall Width | 4515 mm |
Overall Height | 4265 mm |
WORKING PARAMETER | DESCRIPTION |
Dumping Height | 8090 mm |
Digging Reach On Ground | 11950 mm |
Digging Depth | 7120 mm |
Ground Clearance | 915 mm |
Ground Pressure | 106.6 kPa |
Bucket Size | 6.0 m3 |
Shoe Width, Grouser Type | 750 mm, Double Grouser |
Swing Speed | 6.9 r/min |
Travel Speed (Low/High) | 2.8/4.4 km/h |
