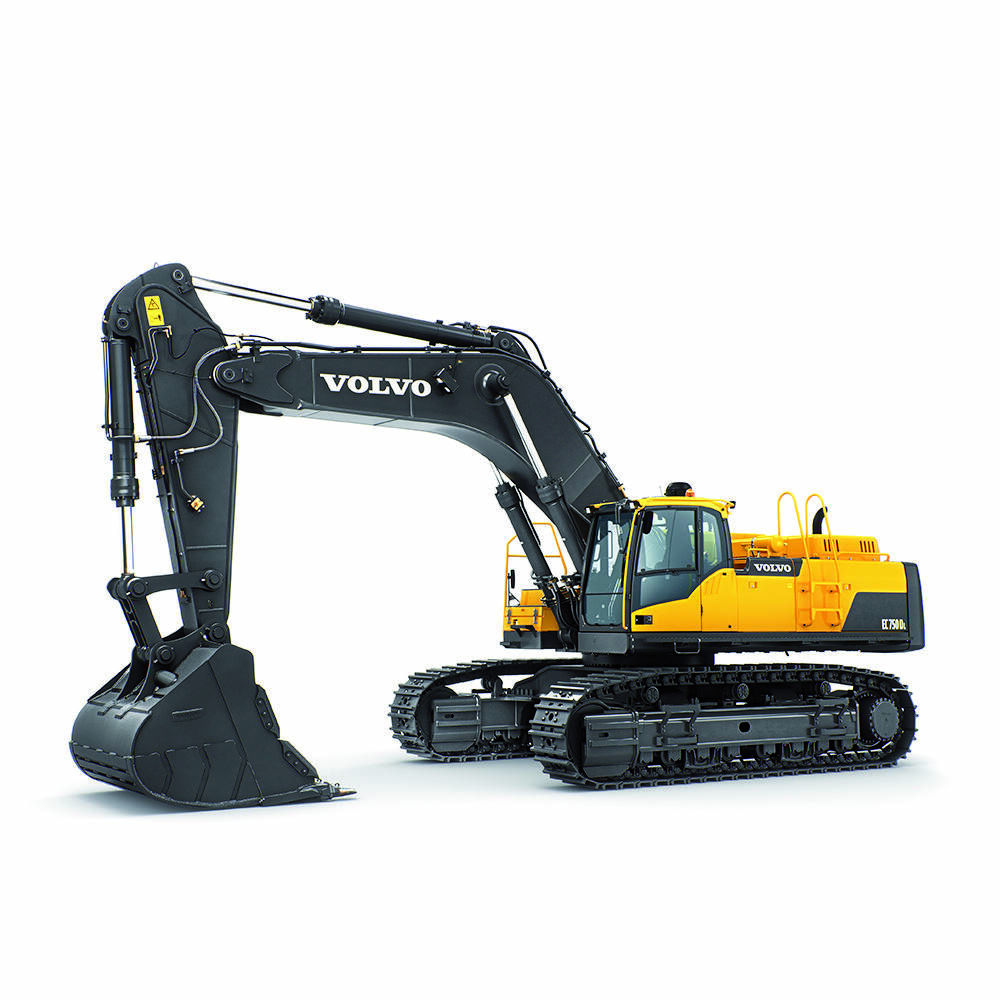

EC750D
Tackle challenging job sites with ease in the EC750D compact excavator from Volvo. Built with high quality components.
| TECHNICAL SPECIFICATIONS | DESCRIPTION |
|---|---|
| Operating Weight | 73880 kg |
| Engine Type | Volvo D16, Tier-3 |
| Gross Power | 523 hp |
| Maximum Torque @Engine Speed | 2500 Nm @1340 rpm |
| Displacement | 16.1 Liter |
| DIMENSION | DESCRIPTION |
| Overall Length | 12200 mm |
| Overall Width | 4290 mm |
| Overall Height | 4855 mm |
| WORKING PARAMETER | DESCRIPTION |
| Dumping Height | 7000 mm |
| Digging Reach On Ground | 11160 mm |
| Digging Depth | 7210 mm |
| Ground Clearance | 858 mm |
| Ground Pressure | 93.1 kPa |
| Bucket Size | 5.16 m3 |
| Shoe Width, Grouser Type | 750 mm, Double Grouser |
| Swing Speed | 7 r/min |
| Travel Speed (Low/High) | 2.9/4.6 km/h |
