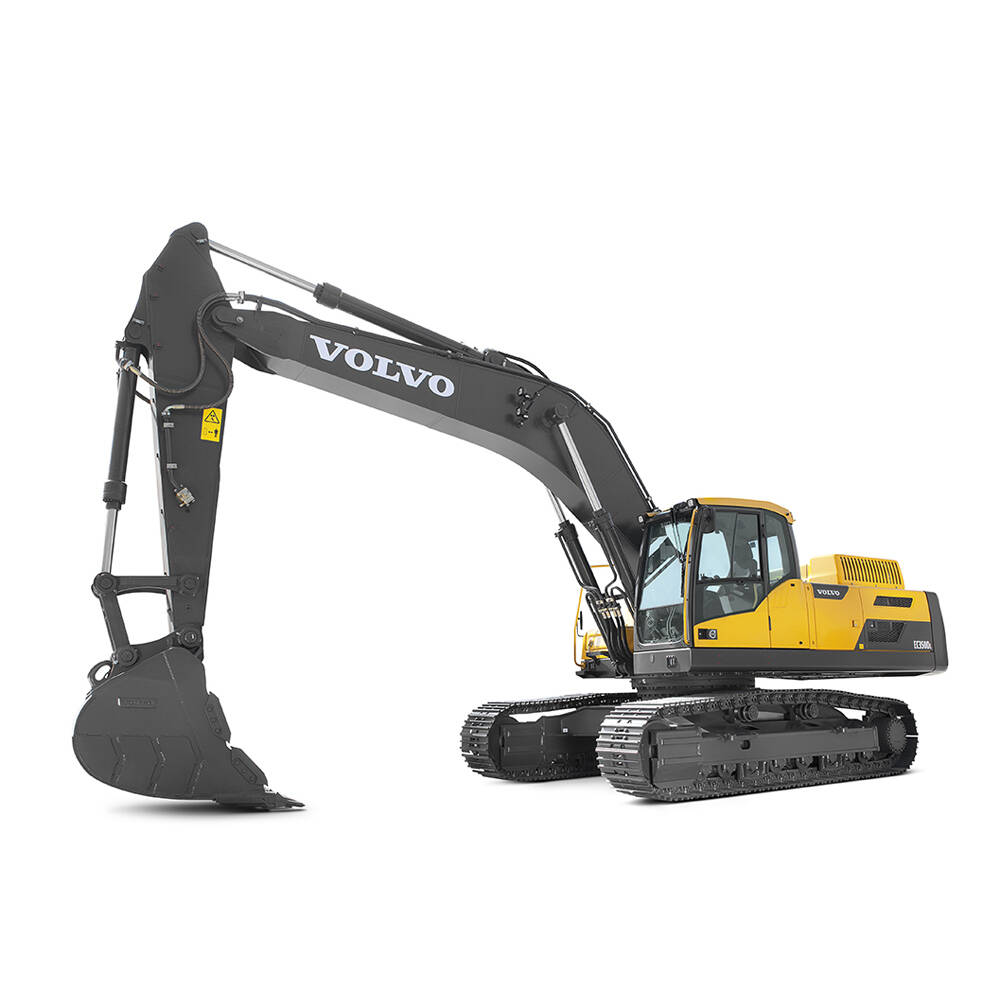

EC350D

Tackle challenging job sites with ease in the EC350D compact excavator from Volvo. Built with high quality components.

Contact Us

TECHNICAL SPECIFICATIONS DESCRIPTION
Operating Weight 36950 kg
Engine Type Volvo D8, Tier-2
Gross Power 286 hp
Maximum Torque @Engine Speed 1340 Nm @1350 rpm
Displacement 7.8 Liter
DIMENSION DESCRIPTION
Overall Length 10530 mm
Overall Width 3190 mm
Overall Height 3490 mm
WORKING PARAMETER DESCRIPTION
Dumping Height 6820 mm
Digging Reach On Ground 10210 mm
Digging Depth 6740 mm
Ground Clearance 500 mm
Ground Pressure 53.1 kPa
Bucket Size 2.33 m3
Shoe Width, Grouser Type 800 mm, Triple Grouser
Swing Speed 10.3 r/min
Travel Speed (Low/High) 3.3/5.1 km/h
