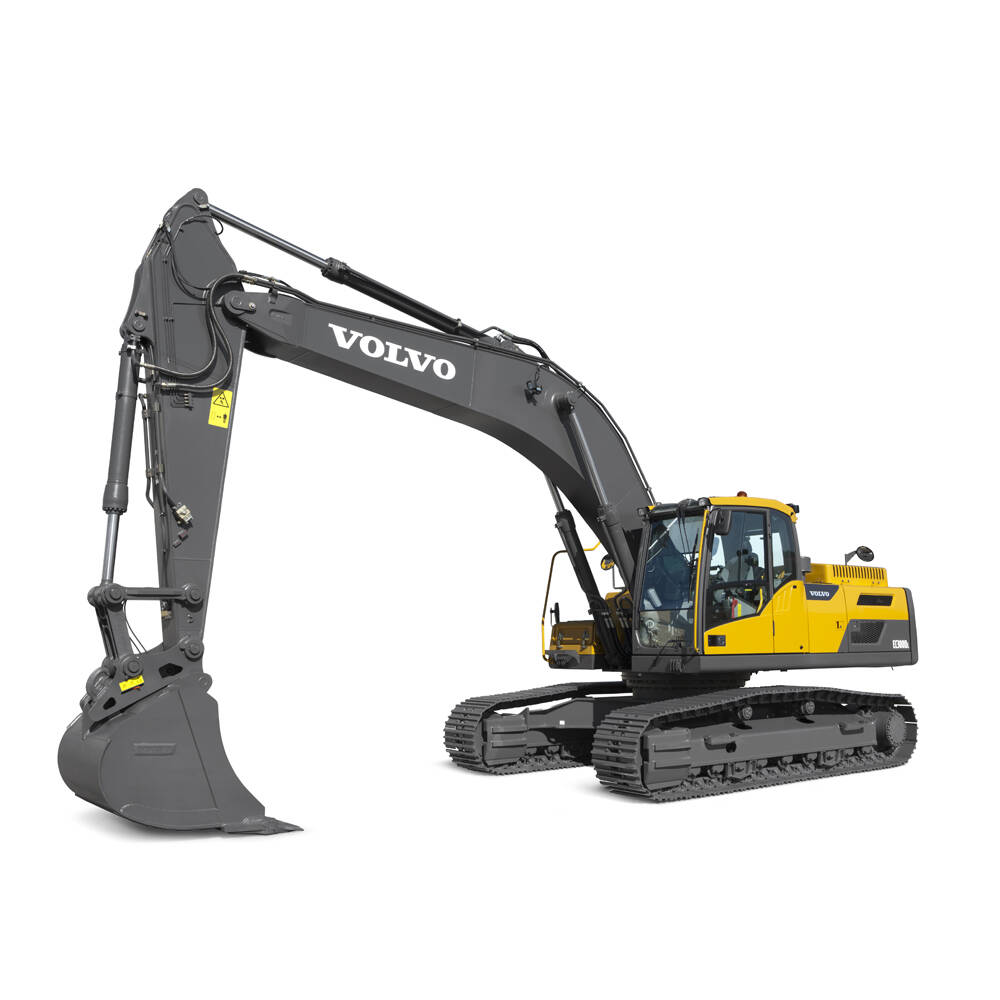

EC300DL
Tackle challenging job sites with ease in the EC300DL compact excavator from Volvo. Built with high quality components.
| TECHNICAL SPECIFICATIONS | DESCRIPTION |
|---|---|
| Operating Weight | 31180 kg |
| Engine Type | Volvo D7, Tier-2 |
| Gross Power | 231 hp |
| Maximum Torque @Engine Speed | 1080 Nm @1350 rpm |
| Displacement | 7.1 Liter |
| DIMENSION | DESCRIPTION |
| Overall Length | 10530 mm |
| Overall Width | 3190 mm |
| Overall Height | 3350 mm |
| WORKING PARAMETER | DESCRIPTION |
| Dumping Height | 7040 mm |
| Digging Reach On Ground | 10520 mm |
| Digging Depth | 7350 mm |
| Ground Clearance | 480 mm |
| Ground Pressure | 45.1 kPa |
| Bucket Size | 1.76 m3 |
| Shoe Width, Grouser Type | 800 mm, Triple Grouser |
| Swing Speed | 10.7 r/min |
| Travel Speed (Low/High) | 3.4/5.4 km/h |
